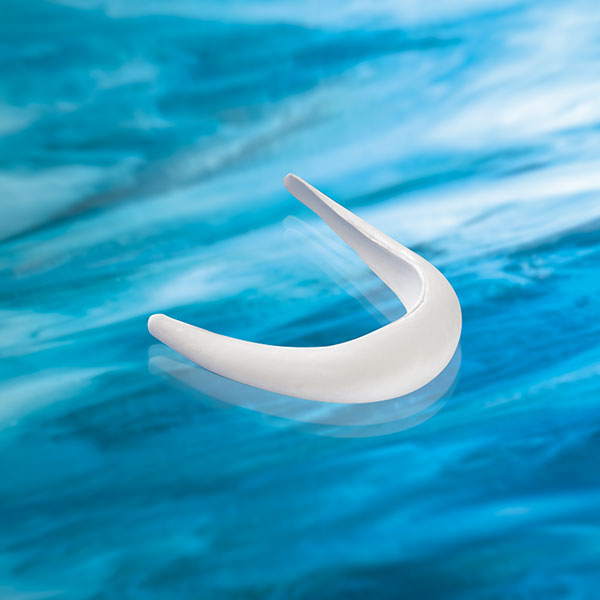

ePTFE-Coated Extended Anatomical Chin
Full lateral arms blend into mandible.

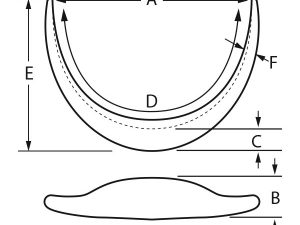

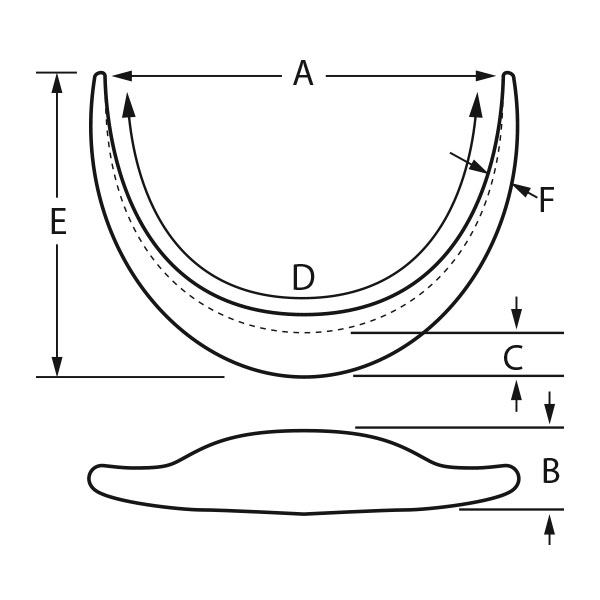

| Cat. No. | Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| ePTFE-EAC-S | Small | 5.5 | 1.0 | 0.45 | 9.0 | 3.7 | 0.2 |
| ePTFE-EAC-M | Medium | 5.6 | 1.2 | 0.50 | 9.5 | 4.2 | 0.4 |
| ePTFE-EAC-L | Large | 6.8 | 1.4 | 0.60 | 11.0 | 4.8 | 0.4 |
| ePTFE-EAC-XL | X-Large | 6.0 | 1.4 | 0.75 | 11.0 | 5.1 | 0.5 |
| Dimensions in Centimeters |
